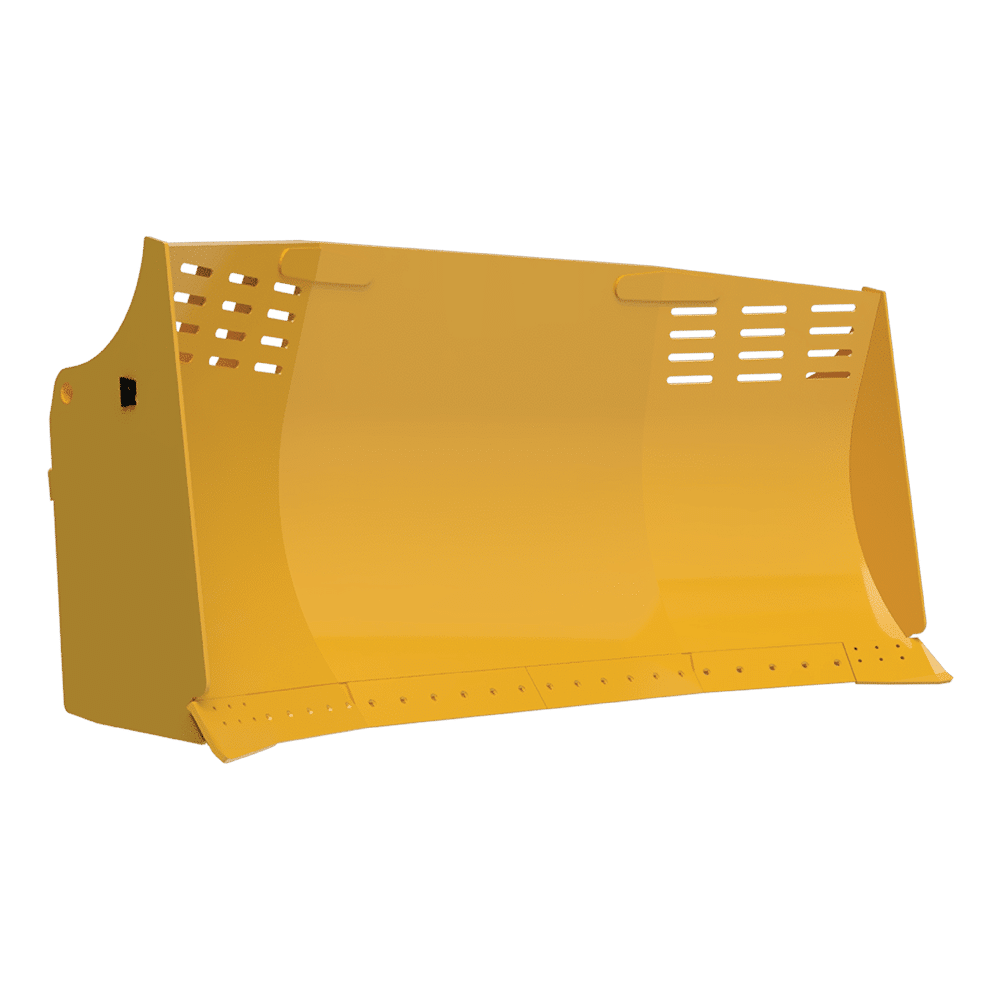

Landfill U-Blade
Move trash in a hurry!
• Delivers up to double the productivity of standard blades in trash applications.
• See what’s going on through screened panels at each end of the blade.
• Custom spillguards, profiles, widths, heights, and other options are available.
• High-strength, alloy steel construction extends product life and prevents washboarding and expensive moldboard replacement.
• Equipped with heat-treated reversible cutting edges.
Description
LANDFILL BLADES FOR EFFICIENT TRASH DOZING
Lower landfill dozing costs with a Rockland SL Landfill U-Blade. Whether it be pushing large loads of trash and debris or spreading cover, the SL blade improves productivity because these blades were designed specifically for landfill operations. From the heat-treated, reversible cutting edges to the top of the oversized moldboard, Rockland SL U-Blades prove they mean business. The extra height and visibility “windows” help operators produce more with less effort. Rockland SL Landfill U-Blades are built entirely of high-strength, weight-saving alloy steel plate for years of maximum productivity and dependable service.
SL LANDFILL U-BLADE
|
Machine |
25 | 30 | 30 | 40 | 40 | 50 | 60 | 60 | 70 | 70 | 80 | 90 |
|
Capacity (Yd3) (mm3) |
9.5
7.27 |
11.6
8.87 |
16
12.23 |
21
16.07 |
24
18.35 |
34
26.01 |
40
30.58 |
45
34.43 |
50
38.23 |
54
41.31 |
56
42.84 |
70
53.52 |
| Width (“)
(mm) |
120
3048 |
132
3353 |
152
3861 |
168
4267 |
168
4267 |
204
5182 |
216
5486 |
240
6096 |
240
6096 |
264
6706 |
264
6706 |
264 6706 |
| Height (“)
(mm) |
63
1676 |
66
1727 |
71
1804 |
77
1930 |
83
2108 |
88
2286 |
93
2362 |
94
2388 |
98
2489 |
96
2438 |
100
2540 |
110 2794 |
| Wing Angle | 25° | 25° | 25° | 25° | 25° | 25° | 30° | 30° | 30° | 30° | 30° |
30° |
| Cutting Edges (“)
(mm) |
3/4×8
19×203 |
3/4×8
19×203 |
3/4×8
19×203 |
1×10
25×254 |
1×10
25×254 |
1×10
25×254 |
1×10
25×254 |
1×10
25×254 |
1×10
25×254 |
1×10
25×254 |
1-1/8×13
29×330 |
1-1/8×13 29×330 |
| Weight (lbs)
(kg) |
3100
1406 |
3500
1588 |
3600
1633 |
5500
2495 |
5800
2631 |
7900
3583 |
9000
4082 |
10300
4672 |
11000
4989 |
13900
6305 |
14500
6577 |
16500 7484 |
Unbolded numbers are in mm/kg. Specifications are subject to change without notice.
INSTALLATION INFORMATION
Rockland Light Material U-Blades come complete with all necessary attaching brackets, ready to mount on standard push beam assemblies using standard factory pins.
Warranty
Rockland Landfill U-Blades are guaranteed against failure due to defective design, materials, or workmanship for a period of two years or 4,000 hours.
